Aut. continuous box tipper CKKL 1200

Category: Feeding of fruits
Dictionary Error: KiwisTangerinesNectarinesPeaches
Company: GREEFA

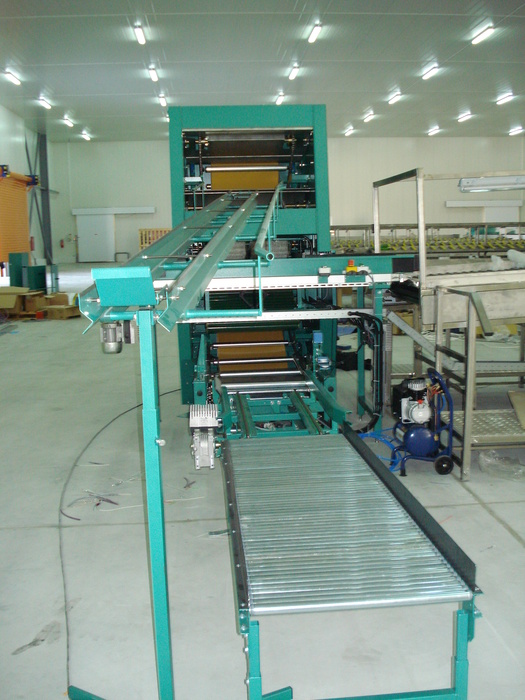

The automatic continuous box tipper CKKL 1200 is used at the beginning of the fruit line and it is manufactured by the Dutch comppany Greefa. It provides easy and continuous feeding of the line with fruits. It is suitable for delicate fruits because of the controlled tipping of the crates and the controlled output of the fruit of the crate.

Specifications autom. continuous box tipper, CKKL:
Capacity max.                         : 1200 boxes/hour
Length of box min./max.          : 470/600 mm
Width of box min./max.           : 255/400 mm
Height of box min./max.          : 150/320 mm
Evacuation height min./max.  : 1200/1350 mm
Evacuation width                    : 750 mm
Required compressed air         : 6 bar
Air consumption                      : 20 l/min (ANR)
